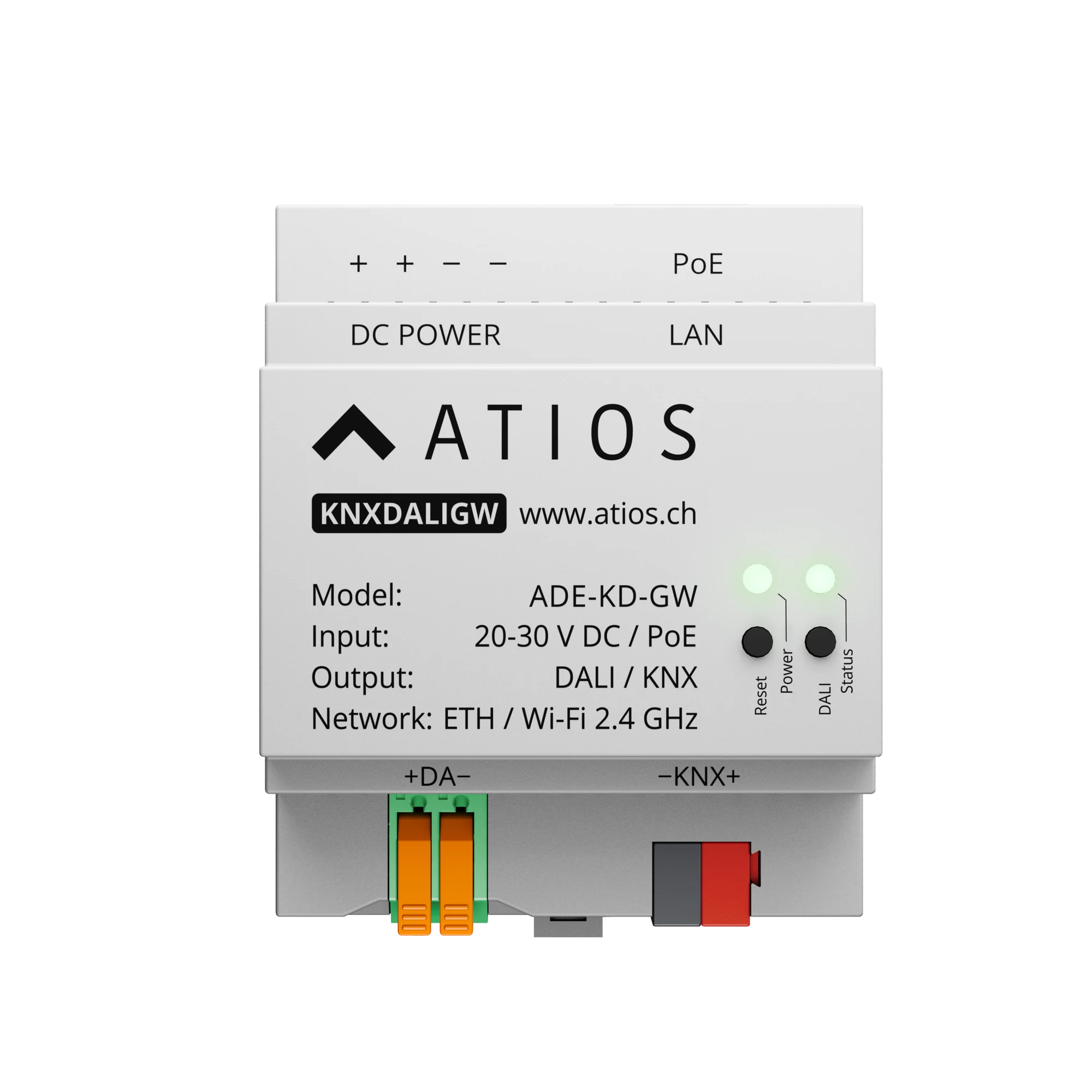

KNX-DALI Gateway

ADE-KD-GW

The KNX-DALI Gateway binds DALI luminaires into a KNX installation: lights are addressed and commissioned in our intuitive DALI Configurator. Integrated DALI power supply.

Coming Soon
KNX-DALI Gateway

Features

  • KNX-DALI gateway: controls up to 64 DALI control gear and 16 groups over the KNX bus, configured from ETS.
  • Web Interface for addressing, grouping, and testing DALI lighting.
  • Full DT8 colour control: tunable white in Kelvin and RGB/HSV colour on every DALI address.
  • ETS product database objects: On/Off, On/Off status, relative dimming, value dimming, value status, HSV 2-byte object, HSV status, tunable white in Kelvin, tunable white status, for all 64 addresses, 16 groups, and broadcast.
  • Integrated DALI power supply (250 mA), can be disabled when an external supply is used.
