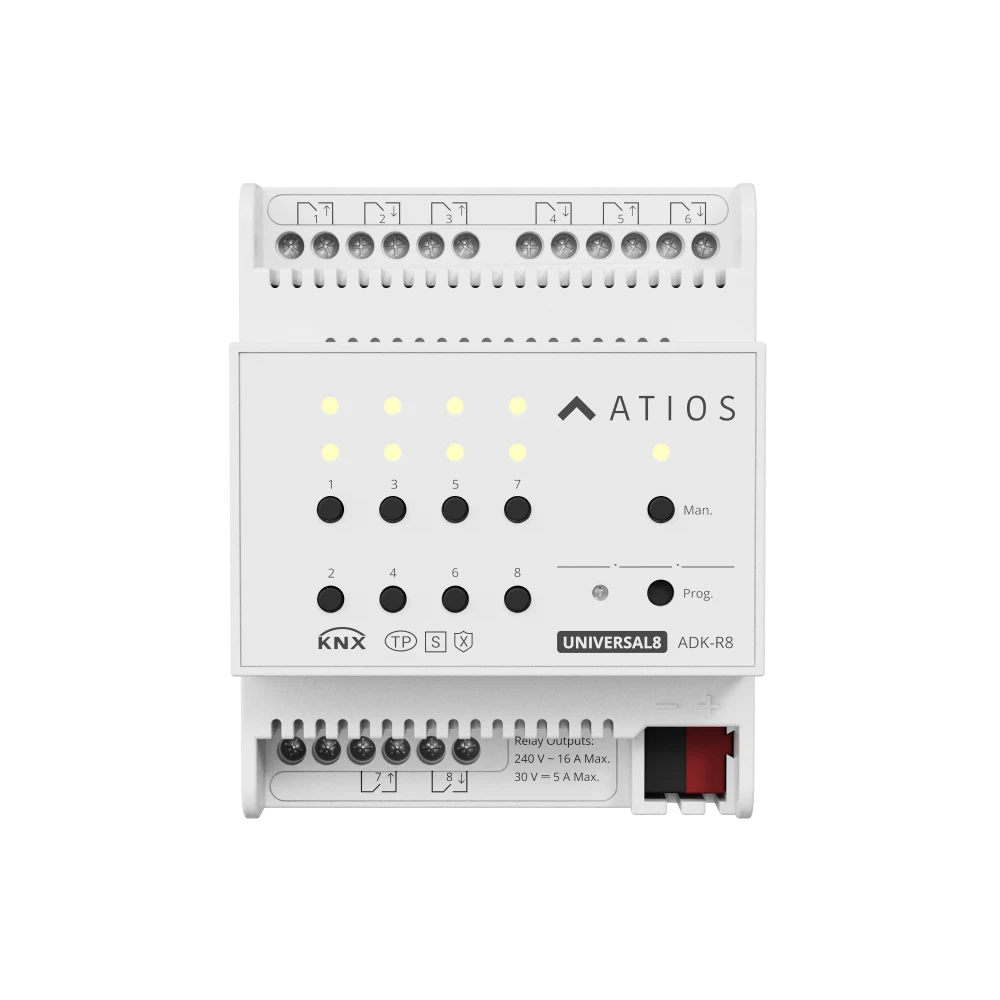

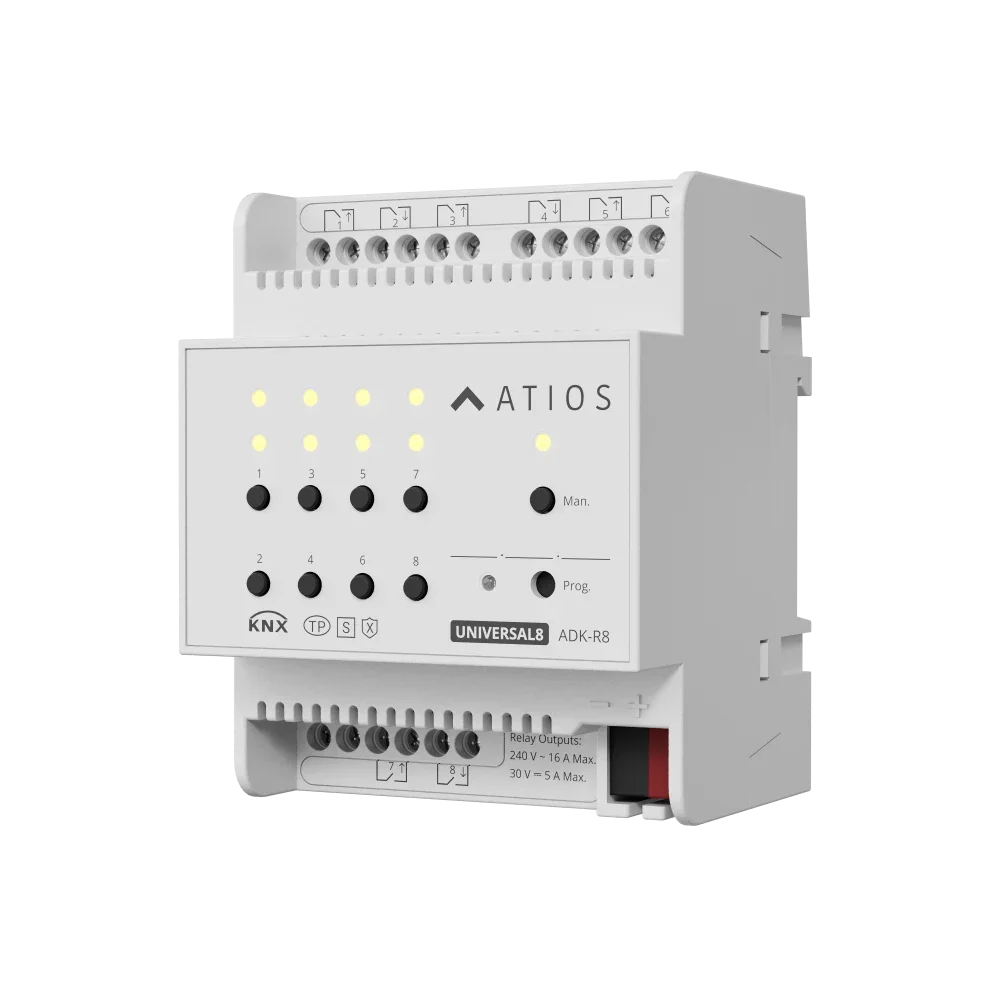

KNX Universal Actuator

ADK-R8

Installed in the electrical cabinet on the DIN rail. Its 8 relay outputs switch lights, sockets, shutters, fan coils or valves, freely mixed per channel: you assign the functions in ETS and can override every channel by hand on the device.

CHF 225.00

KNX Universal Actuator

Features

  • Universal KNX actuator with 8 freely configurable output channels for switch, shutter (AC/DC), fan coil, or valve control.
  • KNX Secure, configured via ETS5 or higher.
  • Switch outputs: time functions, 8 scenes, logic, status response, forced operation.
  • Heating actuator mode: switch outputs drive thermal heating valves directly (PWM or 2-point), without a separate controller.
  • Shutter AC/DC outputs: up/down, position 0-100%, louvre adjustment, 8 scenes, automatic sun protection, safety function, two modes (venetian blind / shutter).
  • Fan coil outputs: up to 3-level fan speed, step-switch and steering-switch modes, automatic, manual and forced operation.
  • Valve outputs: continuous (3-point), PWM and 2-point switching; valve-curve correction and automatic cleaning for continuous valves.
